With the semi-automatic grinding and polishing machines both single and central pressure can be applied. The central pressure allows grinding and polishing of mounted, unmounted and oversized specimens. In combination with a removal measurement, grinding can be done automatically to a defined sample height if required. With single pressure, up to six samples (depending on sample holder) of different sizes can be processed in one sample holder by pressing on individual plungers.
No. of samples: 1-6
Display Type: List

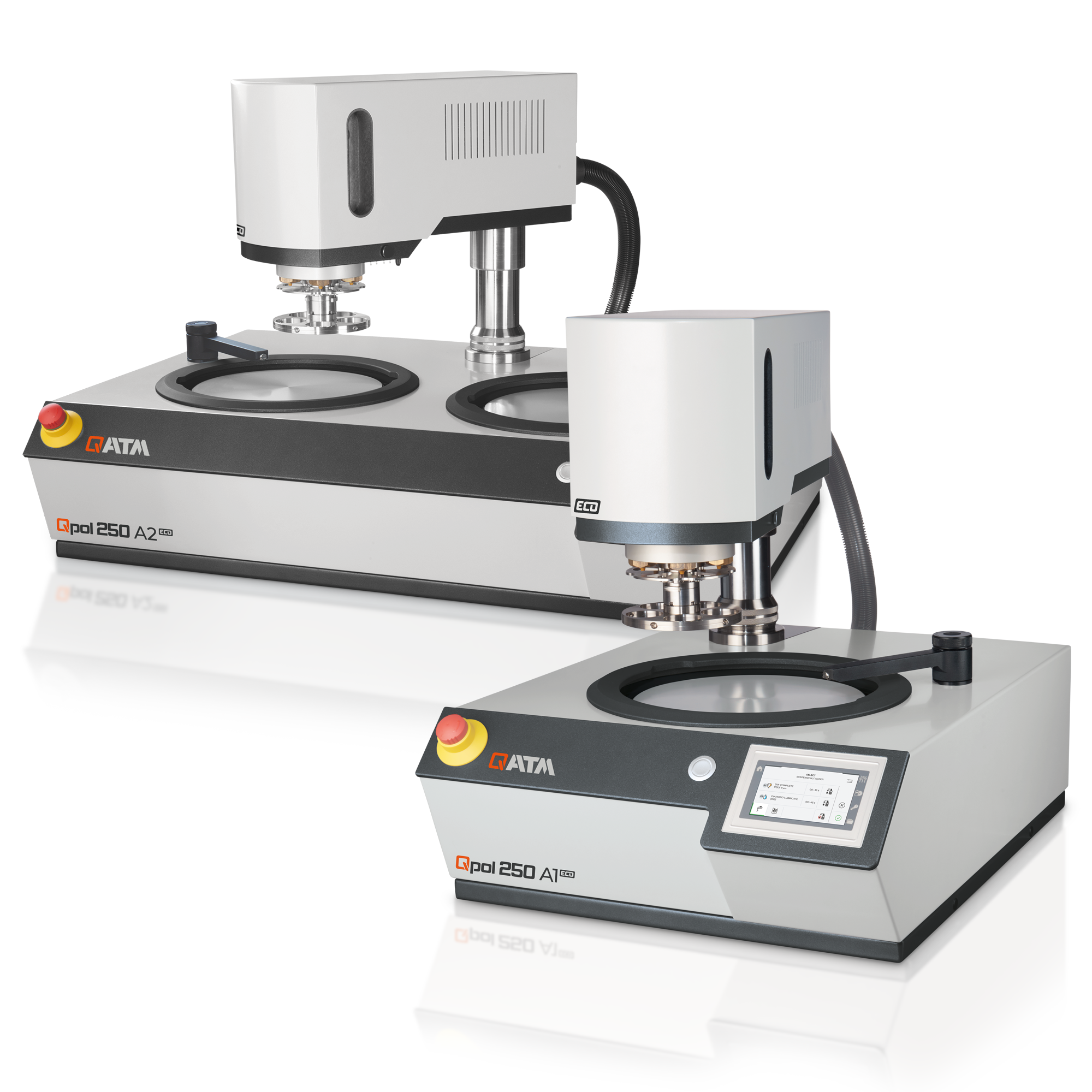

Product: Qpol 250 A1-ECO (Saphir 250 A1-ECO)
Features:
Product: Qpol 250 A1-ECO (Saphir 250 A1-ECO)
Features:
- Single or twin wheel unit
- Working wheels ø 200/250 mm
- Programmable memory for reproducible results
- No. of samples (single pressure) 1-6 samples ø 40 mm
Display Type: List

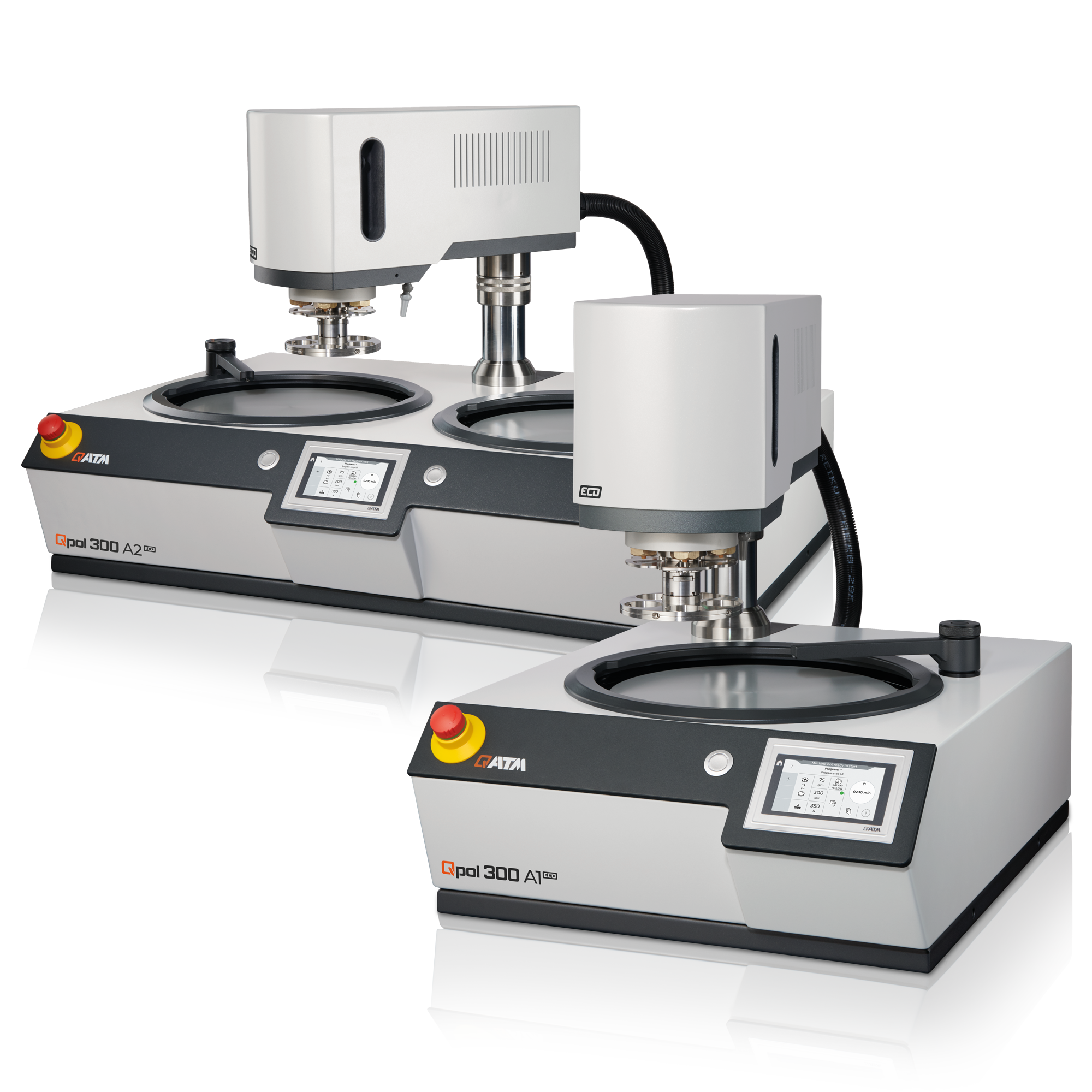

Product: Qpol 300 A1-ECO+
Features:
Product: Qpol 300 A1-ECO+
Features:
- Single or twin wheel unit
- Working wheels ø 250/300 mm
- Programmable memory for reproducible results
- No. of samples (single pressure) 1-6 samples ø 50 mm
Display Type: List

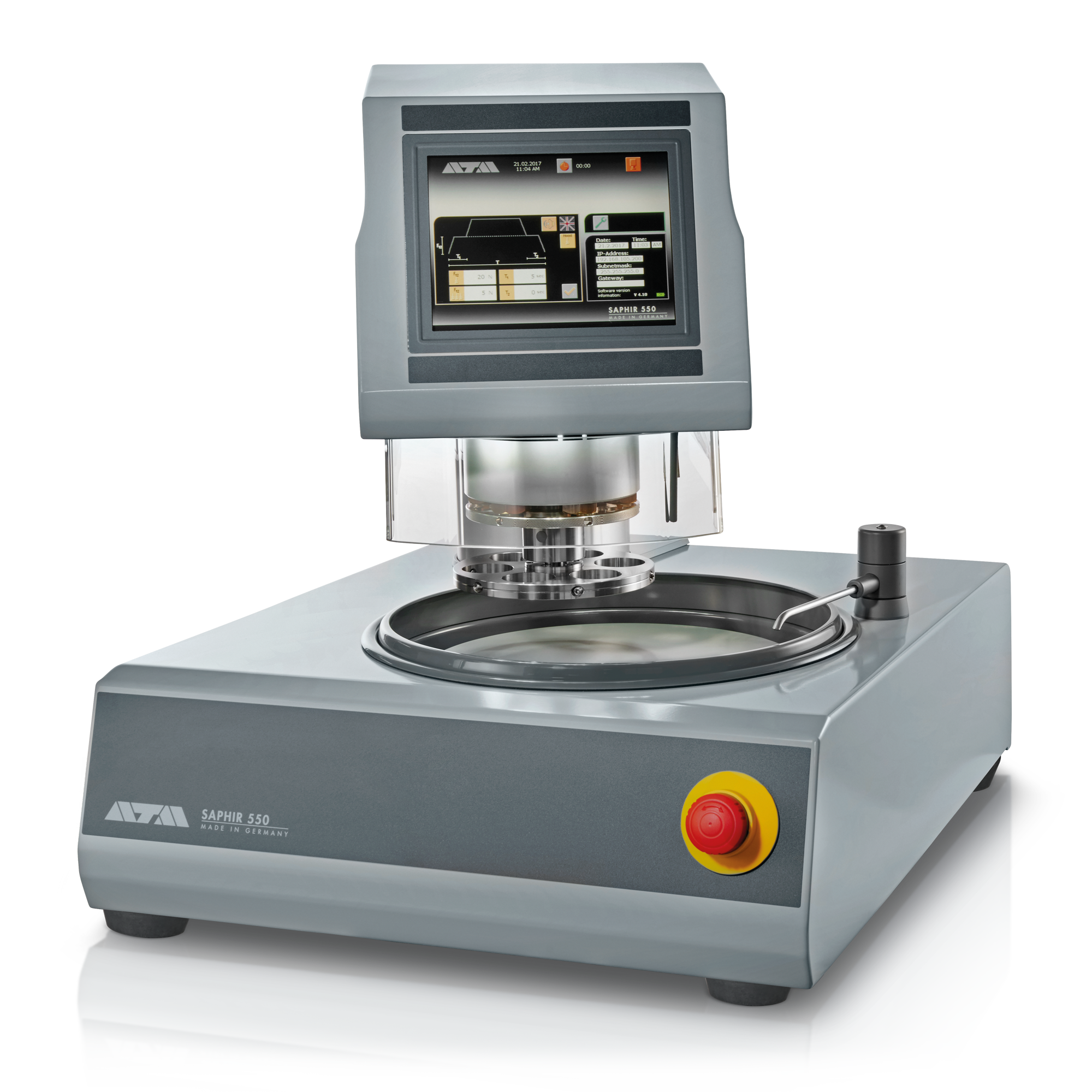

Product: Saphir 550.3 / Rubin 520.3
Features:
Product: Saphir 550.3 / Rubin 520.3
Features:
- Working wheels ø 200 - 300 mm
- Single and central pressure 6x ø 50 mm
- Programmable memory for reproducible results
- Dosing system (option) 6-fold
- Single wheel unit
Display Type: List
Product: Saphir 560.3 / Rubin 520.3
Features:
Product: Saphir 560.3 / Rubin 520.3
Features:
- Working wheels ø 200-300 mm
- Single and central pressure 6x ø 50 mm
- Programmable memory for reproducible results
- Dosing system (option) 6-fold
- Twin wheel unit
Display Type: List

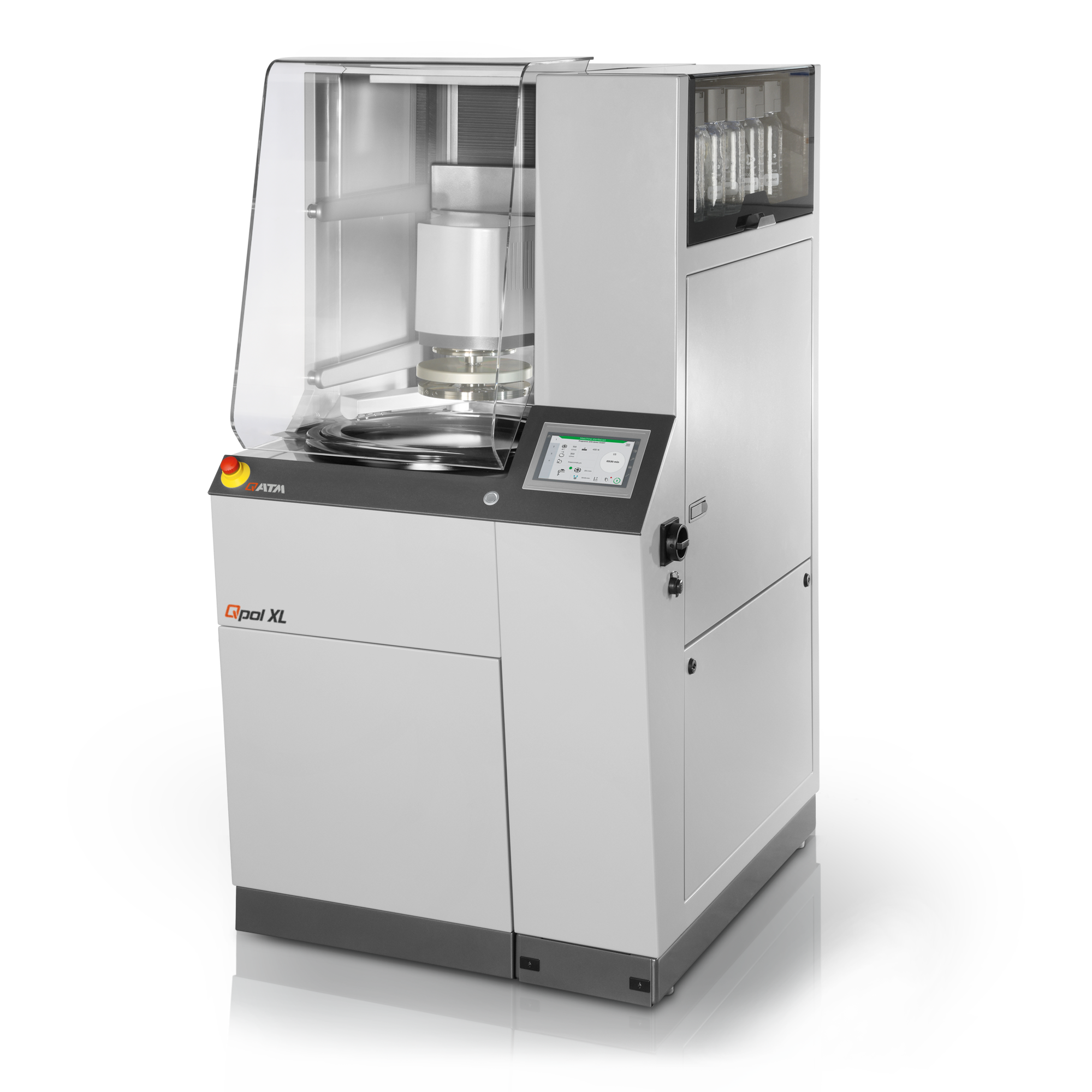

Product: Qpol XL
Features:
Product: Qpol XL
Features:
- Working wheels ø 300 / 350 mm
- Central pressure 50 – 750 N
- Integrated cleaning station (optional)
- Integrated modular dosing system (optional)
Display Type: List

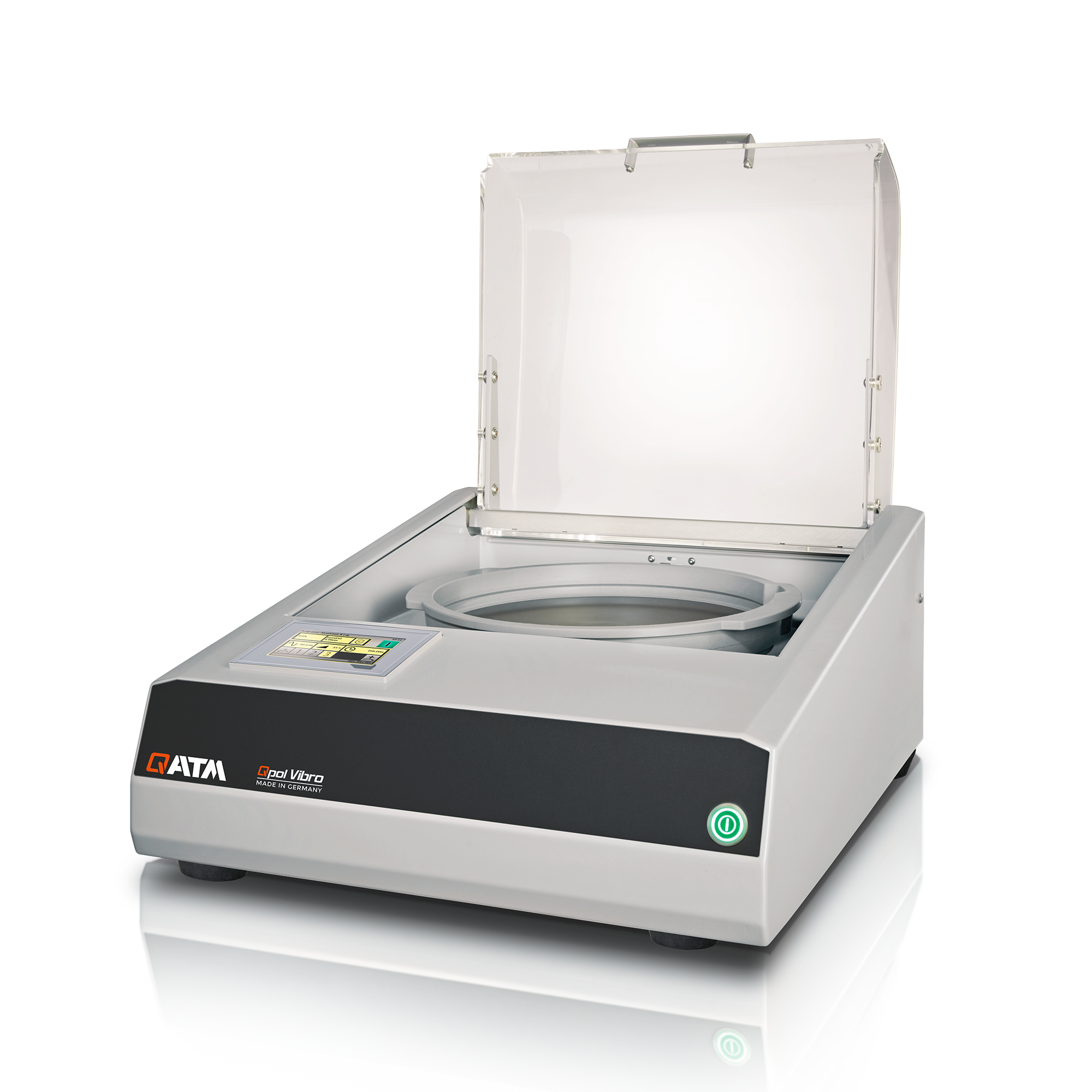

Product: Qpol Vibro (Saphir Vibro)
Features:
Product: Qpol Vibro (Saphir Vibro)
Features:
- Polishing bowl ø ø 308 mm
- Vibration frequency 60 - 120 Hz
- Ambient temperature 10 - 40 °C
- Pressure via weights for sensitive samples
- Programmable memory for reproducible results
- Customized sample holders
